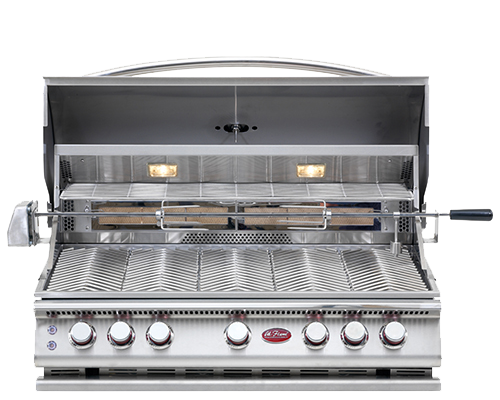

Cal Flame Convection | 95,000 BTU | 40-Inch Built-In Gas Grill | 304 Stainless Steel

The Cal Flame Convection 5-Burner (SKU BBQ18875CP) is a 40-inch built-in gas grill with 1,000 sq in of cooking surface, designed for permanent outdoor kitchen installations. It is built for the outdoor cook who wants convection-assisted heat distribution across five independent zones in a permanent island setup. The grill features 304 stainless steel construction, five 15,000 BTU cast stainless steel burners with independent ignition, a centrifugal fan that circulates heat throughout the grilling area, and a full-sized rotisserie rod rated for up to 35 lbs. Available in Liquid Propane (LP) and Natural Gas (NG).

Why This Built-In Gas Grill

Five independent heat zones with convection technology — five 15,000 BTU burners with independent ignition across 1,000 sq in of cooking surface, with a centrifugal fan for uniform heat circulation.

Rotisserie-ready out of the box — a full-sized rotisserie rod rated for up to 35 lbs or two chickens ships with the grill; motor mounts configurable left or right.

LP and natural gas compatible — available in both Liquid Propane and Natural Gas configurations; specify at time of order.

Built for permanent installation — cut-out dimensions of 38 1/4" W x 22" D x 9 1/2" H fit standard outdoor kitchen island openings.

Cook day or night — built-in burner lights allow use after dark.

Key Features

• 304 Stainless Steel Construction — corrosion-resistant exterior for permanent outdoor installation
• Five 15,000 BTU Cast Stainless Steel Burners — independent easy-start ignition on each burner; lip guards on all burners to prevent clogging
• Centrifugal Convection Fan — circulates heat uniformly throughout the grilling area
• 1,000 Sq In Cooking Surface — with 5 removable heavy-duty V-grates
• Rotisserie Rod Included — full-sized; holds up to 35 lbs or two chickens; motor mounts left or right side
• Two-Position Full-Width Warming Rack — keeps cooked food warm while main grates stay in use
• Full-Width Drip Tray — simplifies grease cleanup
• Built-In Thermometer — monitors cooking chamber temperature at all times
• Built-In Burner Lights — illuminate the cooking surface for day or night use
• Modular Burner Positions — any burner can be swapped for an optional Sear Zone burner or Smoke Tray

Specifications

Warranty coverage is provided by Cal Flame and is included in the product documentation.

What's Included

• Cal Flame Convection 5-Burner built-in gas grill unit (BBQ18875CP)
• 5 removable V-grates
• Two-position full-width warming rack
• Full-width drip tray
• Built-in thermometer (installed)
• Built-in burner lights (installed)
• Centrifugal convection fan (installed)
• Rotisserie rod (holds up to 35 lbs)
• Rotisserie motor mounts (left or right side)
• C-Griddle Tray
• C-Smoker Box
• C-Grill Cover

Installation / Setup

• Cut-out required: 38 1/4" W x 22" D x 9 1/2" H — measure your island opening before ordering
• Overall unit dimensions: 39" W x 24" D x 22 7/16" H
• Installation type: Drop-in / built-in; designed for permanent outdoor kitchen island installation
• Fuel: Liquid Propane (LP) or Natural Gas (NG) — specify configuration at time of order
• Outdoor use only — not rated for indoor installation
• Rotisserie motor mounts: configurable for left or right side
• Surround compatibility: Verify that your island surround material is rated for proximity to gas heat

Professional installation is recommended for permanent outdoor kitchen builds to ensure proper fit, gas line connection, and compliance with local building and gas codes.

Shipping and Warranty

• Shipping: Free standard shipping on eligible U.S. orders. This product ships via freight carrier. See our Shipping Policy for delivery timeframes. No delivery to P.O. boxes.
• Warranty: Cal Flame provides a 10-year warranty on the structure, stainless steel burners, and V-grates; 3 years on flame tamers and warming rack; and 1 year on gas valves and other components. Warranty documentation is included with the product.
• Returns: Items may be returned within 30 days of delivery in unused, original-packaging condition. Damage must be reported within 7 days of delivery. A 25% restocking fee applies to approved returns. Customer is responsible for return shipping unless the item arrived defective or damaged. See our Return Policy for full details.

Common Questions

What are the cut-out dimensions for the Cal Flame Convection 5-Burner grill?
The Cal Flame Convection 5-Burner (BBQ18875CP) requires a cut-out opening of 38 1/4" wide x 22" deep x 9 1/2" high. The overall unit dimensions are 39" W x 24" D x 22 7/16" H. Verify your island opening against the cut-out dimensions before ordering.

Does the Cal Flame Convection 5-Burner work with natural gas?
Yes. The Cal Flame Convection 5-Burner (BBQ18875CP) is available in both Liquid Propane (LP) and Natural Gas (NG) configurations. Specify your fuel type at time of order.

Is the rotisserie included with the Cal Flame Convection 5-Burner grill?
Yes. The Cal Flame Convection 5-Burner includes a full-sized rotisserie rod rated for up to 35 lbs or two chickens. Motor mounts are configurable for left or right side.

What warranty does the Cal Flame Convection 5-Burner grill carry?
Cal Flame provides a 10-year warranty on the structure, stainless steel burners, and V-grates; a 3-year warranty on flame tamers and the warming rack; and a 1-year warranty on gas valves and other components. Warranty documentation ships with the product.

What is the return policy for this grill?
Smart Chefs Haven accepts returns within 30 days of delivery for items in unused, original-packaging condition. A 25% restocking fee applies to all approved returns. Damage must be reported within 7 days of delivery. Return shipping is the customer's responsibility unless the item arrived defective or damaged.
