Cal Flame G Series | 800 Sq In | Built-In Charcoal Grill | 430 Stainless Steel

Cal Flame

Cal Flame G Series | 800 Sq In | Built-In Charcoal Grill | 430 Stainless Steel

Regular price $1,637.00
Shipping and discounts calculated at checkout.
This item will be available in our store soon. You can pre-order to become the first person owned it.

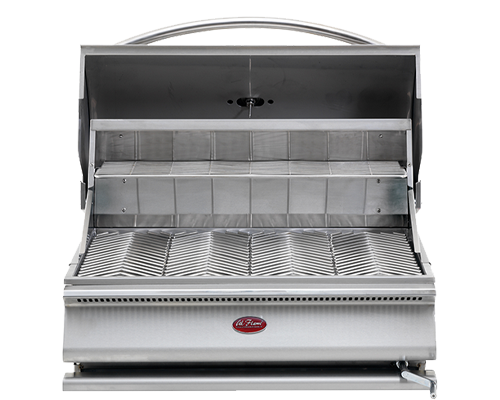

The Cal Flame G Series (SKU BBQ18G870) is an 800 sq in built-in charcoal grill designed for permanent outdoor kitchen installations. It is built for the backyard cook who wants a large, dedicated charcoal cooking station integrated into a countertop or island surround. The grill features 430 stainless steel 16-gauge construction, four removable heavy-duty V-grates, and a crank-handle adjustable charcoal tray for direct heat control without tools.

Why This Built-In Charcoal Grill

Large cooking capacity for groups — 800 sq in of primary cooking surface accommodates multiple cuts simultaneously.

Direct heat control without guesswork — a crank-handle system raises or lowers the charcoal tray to increase or reduce heat output at the source.

Built for permanent installation — cut-out dimensions of 30 7/8" W x 22" D x 9 1/2" H fit standard outdoor kitchen island openings; overall unit is 31 3/4" W x 20 7/8" D x 22 7/16" H.

Temperature monitoring included — a built-in temperature gauge lets you track cooking chamber temperature without lifting the lid.

Grease management built in — a handle crank splash guard contains grease and reduces flare-up risk during cooking.

Key Features

  • 430 Stainless Steel, 16-Gauge Construction — seamless, corrosion-resistant exterior for permanent outdoor installation
  • 800 Sq In Cooking Surface — primary grate area for high-volume cooking
  • Removable Heavy-Duty V-Grates — exclusive V-pattern design; removable for cleaning
  • Crank-Handle Adjustable Charcoal Tray — raises or lowers charcoal bed to control heat intensity
  • Two-Position Full-Width Warming Rack — keeps cooked food warm while the main grate stays in use
  • Built-In Temperature Gauge — monitors cooking chamber temperature at all times
  • Handle Crank Splash Guard — contains grease and provides airflow management

Specifications

Spec Value
Brand Cal Flame
SKU / Model BBQ18G870
Product Type Built-In Charcoal Grill
Overall Dimensions 31 3/4" W x 20 7/8" D x 22 7/16" H
Cut-Out Dimensions 30 7/8" W x 22" D x 9 1/2" H
Cooking Surface 800 sq in
Construction Material 430 Stainless Steel, 16-Gauge
Grate Type V-grate, removable heavy-duty
Warming Rack Two-position, full-width
Temperature Gauge Built-in
Splash Guard Handle crank splash guard
Fuel Type Charcoal
Warranty — Structure 10 years
Warranty — Flame Tamers and Warming Rack 3 years
Warranty — Porcelain Coated Burners 1 year
Warranty — Gas Valves and Other Components 1 year

Warranty coverage is provided by Cal Flame and is included in the product documentation.

What's Included

  • Cal Flame G Series built-in charcoal grill unit (BBQ18G870)
  • Removable V-grates
  • Two-position full-width warming rack
  • Built-in temperature gauge (installed)

Installation / Setup

  • Cut-out required: 30 7/8" W x 22" D x 9 1/2" H — measure your island opening before ordering
  • Overall unit dimensions: 31 3/4" W x 20 7/8" D x 22 7/16" H
  • Installation type: Drop-in / built-in; designed for permanent outdoor kitchen island installation
  • Fuel: Charcoal only — no gas line or electrical connection required
  • Outdoor use only — not rated for indoor installation
  • Surround compatibility: Verify that your island surround material is rated for proximity to charcoal heat

Professional installation is recommended for permanent outdoor kitchen builds to ensure proper fit and compliance with local building codes.

Shipping and Warranty

  • Shipping: Free standard shipping on eligible U.S. orders. This product ships via freight carrier. See our Shipping Policy for delivery timeframes. No delivery to P.O. boxes.
  • Warranty: Cal Flame provides a 10-year warranty on the structure, 3 years on flame tamers and warming rack, and 1 year on other components. Warranty documentation is included with the product.
  • Returns: Items may be returned within 30 days of delivery in unused, original-packaging condition. Damage must be reported within 7 days of delivery. A 25% restocking fee applies to approved returns. Customer is responsible for return shipping unless the item arrived defective or damaged. See our Return Policy for full details.

Common Questions

What are the cut-out dimensions for the Cal Flame G Series charcoal grill?
The Cal Flame G Series (BBQ18G870) requires a cut-out opening of 30 7/8" wide x 22" deep x 9 1/2" high. The overall unit dimensions are 31 3/4" W x 20 7/8" D x 22 7/16" H. Verify your outdoor kitchen island opening against the cut-out dimensions before ordering.

Is the Cal Flame G Series charcoal grill for outdoor use only?
Yes. The Cal Flame G Series built-in charcoal grill is designed for permanent outdoor kitchen installation only and is not rated for indoor use.

What warranty does the Cal Flame G Series charcoal grill carry?
Cal Flame provides a 10-year warranty on the grill structure, a 3-year warranty on flame tamers and the warming rack, and a 1-year warranty on other components. Warranty documentation ships with the product.

What is the return policy for this grill?
Smart Chefs Haven accepts returns within 30 days of delivery for items in unused, original-packaging condition. A 25% restocking fee applies to all approved returns. Damage must be reported within 7 days of delivery. Return shipping is the customer's responsibility unless the item arrived defective or damaged.

Does this grill require a gas line or electrical connection?
No. The Cal Flame G Series BBQ18G870 is a charcoal-only grill and requires no gas line or electrical connection.
