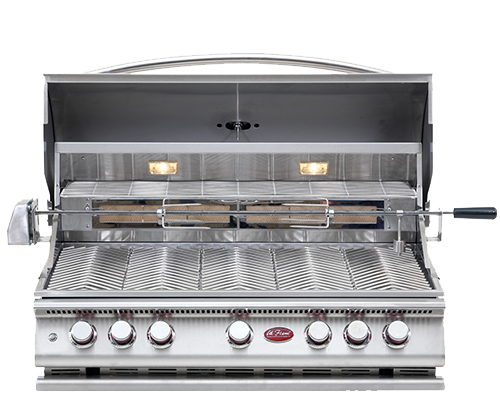

Cal Flame P5 | 95,000 BTU | 40-Inch Built-In Gas Grill | 304 Stainless Steel

The Cal Flame P5 (SKU BBQ19P05) is a 40-inch built-in gas grill with 1,000 sq in of cooking surface, designed for permanent outdoor kitchen installations. It is built for the outdoor cook who wants a large, high-output cooking station with five independent heat zones integrated into a countertop or island surround. The grill features 304 stainless steel construction, five 15,000 BTU cast stainless steel burners with independent ignition, a dedicated 15,000 BTU back burner, and 5 removable heavy-duty V-grates. Available in Liquid Propane (LP) and Natural Gas (NG).

Why This Built-In Gas Grill

High-output cooking across five independent zones — five 15,000 BTU main burners with independent ignition deliver precise heat control across 1,000 sq in of cooking surface.

Rotisserie-ready with back burner included — a dedicated 15,000 BTU back burner and full rotisserie kit ship with the grill; no separate purchase required.

Built for permanent installation — cut-out dimensions of 38 1/4" W x 22" D x 9 1/2" H fit standard outdoor kitchen island openings.

LP and natural gas compatible — available in both Liquid Propane and Natural Gas configurations; specify at time of order.

Cook day or night — built-in burner lights with an easy on/off switch allow use after dark.

Key Features

• 304 Stainless Steel Construction — corrosion-resistant, commercial-grade exterior for permanent outdoor installation
• Five 15,000 BTU Cast Stainless Steel Burners — independent easy-start ignition on each burner; lip guards on all burners to prevent clogging
• 15,000 BTU Back Burner — dedicated rear burner for rotisserie cooking
• 1,000 Sq In Cooking Surface — with 5 removable heavy-duty V-grates
• Two-Position Full-Width Warming Rack — keeps cooked food warm while main grates stay in use
• Full-Width Drip Tray — simplifies grease cleanup
• Built-In Thermometer — monitors cooking chamber temperature at all times
• Built-In Burner Lights — illuminate the cooking surface for day or night use
• Modular Burner Positions — any burner can be swapped for an optional Sear Zone burner or Smoke Tray

Specifications

Warranty coverage is provided by Cal Flame and is included in the product documentation.

What's Included

• Cal Flame P5 built-in gas grill unit (BBQ19P05)
• 5 removable V-grates
• Two-position full-width warming rack
• Full-width drip tray
• Built-in thermometer (installed)
• Built-in burner lights (installed)
• P-Rotisserie
• P-Griddle Tray
• P-Smoker Box
• P-Grill Cover

Installation / Setup

• Cut-out required: 38 1/4" W x 22" D x 9 1/2" H — measure your island opening before ordering
• Overall unit dimensions: 39" W x 24" D x 22 7/16" H
• Installation type: Drop-in / built-in; designed for permanent outdoor kitchen island installation
• Fuel: Available in Liquid Propane (LP) or Natural Gas (NG) — specify configuration at time of order
• Outdoor use only — not rated for indoor installation
• Rotisserie motor mounts: configurable for left or right side
• Surround compatibility: Verify that your island surround material is rated for proximity to gas heat

Professional installation is recommended for permanent outdoor kitchen builds to ensure proper fit, gas line connection, and compliance with local building and gas codes.

Shipping and Warranty

• Shipping: Free standard shipping on eligible U.S. orders. This product ships via freight carrier. See our Shipping Policy for delivery timeframes. No delivery to P.O. boxes.
• Warranty: Cal Flame provides a 10-year warranty on the structure, stainless steel burners, and V-grates; 3 years on flame tamers and warming rack; and 1 year on gas valves and other components. Warranty documentation is included with the product.
• Returns: Items may be returned within 30 days of delivery in unused, original-packaging condition. Damage must be reported within 7 days of delivery. A 25% restocking fee applies to approved returns. Customer is responsible for return shipping unless the item arrived defective or damaged. See our Return Policy for full details.

Common Questions

What are the cut-out dimensions for the Cal Flame P5 gas grill?
The Cal Flame P5 (BBQ19P05) requires a cut-out opening of 38 1/4" wide x 22" deep x 9 1/2" high. The overall unit dimensions are 39" W x 24" D x 22 7/16" H. Verify your outdoor kitchen island opening against the cut-out dimensions before ordering.

Does the Cal Flame P5 work with natural gas?
Yes. The Cal Flame P5 (BBQ19P05) is available in both Liquid Propane (LP) and Natural Gas (NG) configurations. Specify your fuel type at time of order.

Is the rotisserie included with the Cal Flame P5?
Yes. The Cal Flame P5 (BBQ19P05) includes a P-Rotisserie, P-Griddle Tray, P-Smoker Box, and P-Grill Cover in the box. Rotisserie motor mounts are configurable for left or right side.

What warranty does the Cal Flame P5 gas grill carry?
Cal Flame provides a 10-year warranty on the structure, stainless steel burners, and V-grates; a 3-year warranty on flame tamers and the warming rack; and a 1-year warranty on gas valves and other components. Warranty documentation ships with the product.
