Cal Flame P5 | 5-Burner Built-In Propane Grill | 90,000 BTU | Stainless Steel
Couldn't load pickup availability

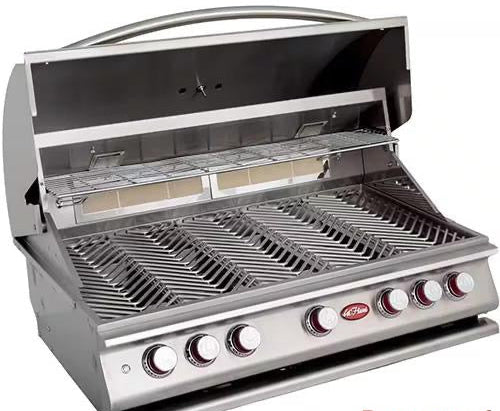

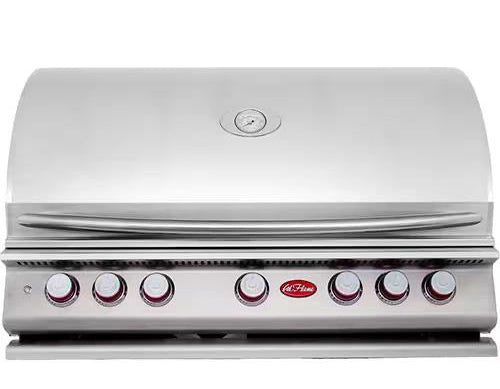

The Cal Flame P5 BBQ19P05 is a 5-burner built-in propane grill designed for permanent installation in an outdoor kitchen counter or island. It is built for homeowners who want high-output gas grilling with a full suite of accessories — rotisserie, griddle, and smoke box — in a single drop-in unit. The grill delivers 90,000 BTU total output across five independently controlled stainless steel burners plus a dedicated 15,000 BTU infrared rear burner for rotisserie cooking.
Why This Built-In Propane Grill
- High total output — 90,000 BTU across five 15,000 BTU cast stainless steel burners, plus a 15,000 BTU infrared rear burner for rotisserie.
- Large cooking surface — 1,000 sq in of cooking area on 3/8 in. solid stainless steel V-grates, with a full-width warming rack above.
- Three cooking modes in one unit — main grill, flat-top griddle tray, and covered smoke box are all included; no separate accessory purchase needed.
- Built for outdoor permanence — fully welded stainless steel body and double-walled hood; weather-resistant construction.
- Rotisserie-ready — holds up to 35 lbs. (approximately 2 chickens); motor mounts on left or right side.
Key Features

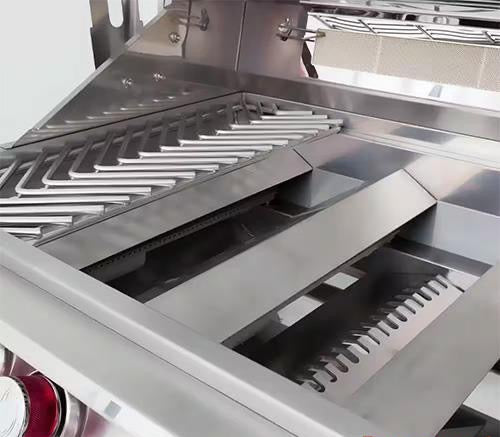

- Five independent burners — each 15,000 BTU cast stainless steel burner has its own piezo ignition activated by the control knob; lip guards on all burners prevent clogging.

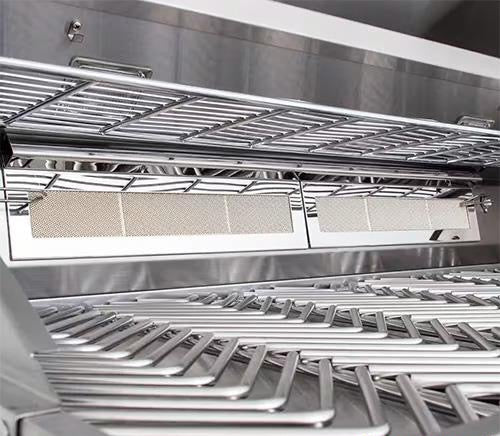

- Infrared rear burner — dedicated 15,000 BTU infrared burner for rotisserie cooking; motor mounts left or right.
- 1,000 sq in cooking surface — 3/8 in. solid stainless steel V-grates; any burner zone can be used as a sear zone.
- Included accessories — rotisserie kit (motor + spit, holds up to 35 lbs.), flat-top griddle tray, covered smoke box, grill cover.

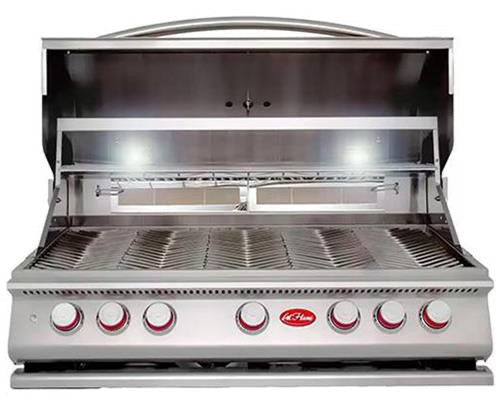

- Lighted workspace — built-in grill lights with on/off switch for cooking after dark.

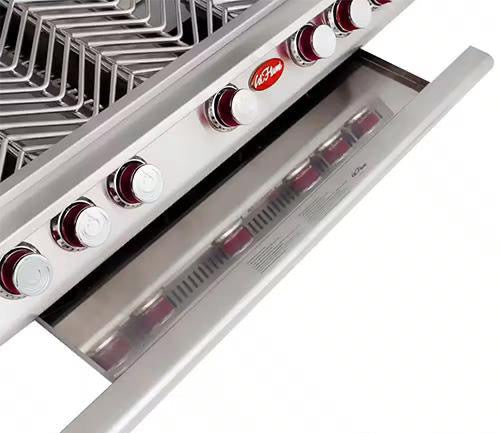

- Full-width pull-out drip tray — catches grease under the entire cooking area; removable for cleaning.
- Double-walled welded hood — locks in heat; front splash guard with vent keeps grease away from control knobs.
Specifications
| Spec | Value |
|---|---|
| Brand | Cal Flame |
| Model | P5 / BBQ19P05 |
| Fuel Type | Propane (LP) only — no conversion kit included |
| Number of Burners | 5 main + 1 infrared rear burner |
| Primary Burner BTU | 75,000 BTU (5 burners) |
| Rear Infrared Burner BTU | 15,000 BTU |
| Total BTU | 90,000 BTU |
| Cooking Surface | 1,000 sq in |
| Grill Grate Material | 3/8 in. solid stainless steel V-grates |
| Burner Material | Cast stainless steel |
| Body Material | Stainless steel (fully welded) |
| Hood | Double-walled welded stainless steel |
| Ignition Type | Piezo (per-burner, knob-activated) |
| Assembled Width | 39 in |
| Assembled Depth | 24 in |
| Assembled Height | 22.4375 in |
| Cutout Width | 38.25 in |
| Cutout Depth | 22 in |
| Cutout Height | 9.5 in |
| Product Weight | 147 lb |
| Rotisserie Capacity | Up to 35 lbs. |
| Assembly Required | No (quick assembly) |
| Color / Finish | Stainless steel |
| Warranty | 10-year limited (see Warranty section below) |
| SKU | BBQ19P05 |
What's Included
- Cal Flame P5 built-in grill unit

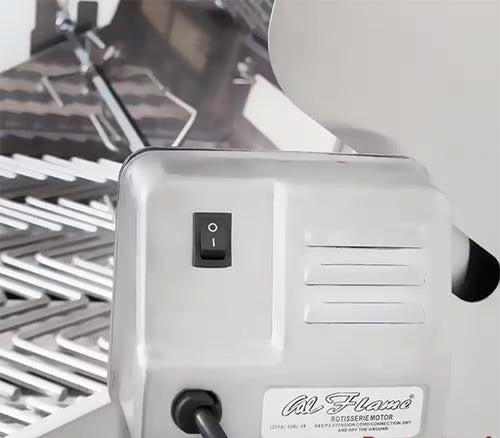

- Rotisserie kit (motor + spit rod)

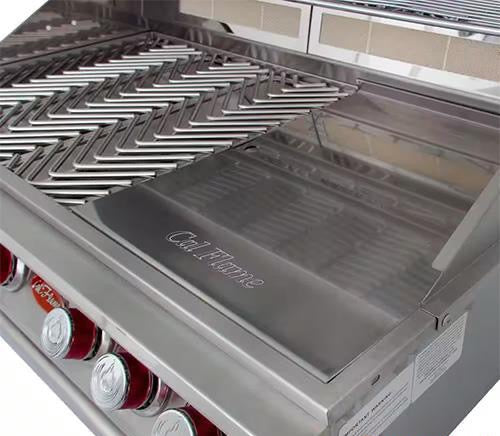

- Flat-top griddle tray
- Covered smoke box

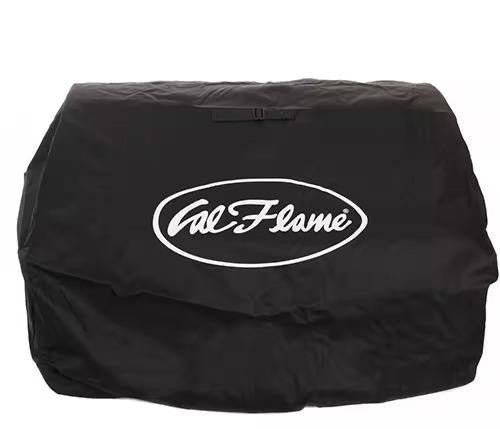

- Grill cover
- Full-width warming rack (installed)
- Full-width pull-out drip tray (installed)
Installation
This grill is designed for built-in installation in an outdoor kitchen counter or island. Key requirements:

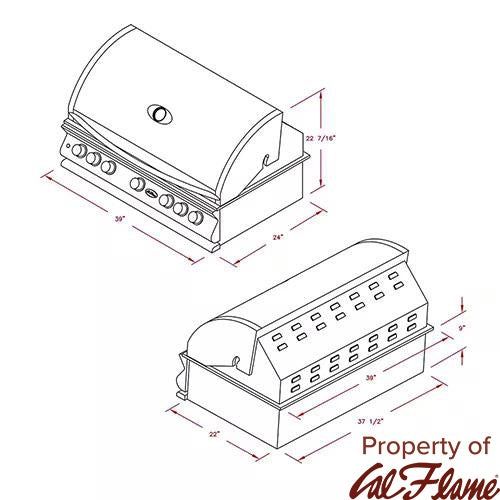

- Cutout dimensions: 38.25 in W x 22 in D x 9.5 in H — verify your counter opening before ordering.
- Fuel: Propane (LP) only. This unit does not include a natural gas conversion kit and is not rated for natural gas use.
- Outdoor use only: Install in a well-ventilated outdoor environment. Not rated for indoor or enclosed installation.
- Weight: 147 lb — plan for adequate structural support in the counter or island.
- Assembly: Manufacturer states quick assembly; no professional installation required for the grill unit itself. Local gas line connection should be performed by a licensed professional in accordance with local codes.
Shipping and Warranty
- Shipping: Free standard shipping to the contiguous United States. Estimated delivery: 3–9 business days from order. Tracking provided by email. No delivery to P.O. boxes.
- Warranty: Cal Flame 10-year limited warranty on cast stainless burners, stainless steel frame/housing, and cooking grids; 3 years on stainless steel flame tamers; 1 year on gas valves and all other parts. Covers defects in workmanship and materials under standard residential use. Does not cover rust/corrosion unless it renders the component non-functional, or damage from misuse, improper fuel, or unauthorized modifications. Shipping and handling fees apply to warranty replacement parts.
- Returns: See our Return Policy. A 25% restocking fee applies to approved non-defective returns. Damage must be reported within 7 days of delivery.
Common Questions
Does this grill work with natural gas?
No. The Cal Flame P5 (BBQ19P05) is configured for propane (LP) only. No natural gas conversion kit is included or available for this model. Verify your fuel source before ordering.
What are the cutout dimensions for installation?
The Cal Flame P5 requires a counter cutout of 38.25 in wide x 22 in deep x 9.5 in high. The assembled grill measures 39 in W x 24 in D x 22.4375 in H. Confirm your opening dimensions before purchase.
What is the warranty on this grill?
Cal Flame provides a 10-year limited warranty on the cast stainless burners, stainless steel frame, housing, and cooking grids. The stainless steel flame tamers carry a 3-year warranty, and gas valves and all other components carry a 1-year warranty. The warranty applies to the original purchaser at the original delivery location under standard residential use.
What accessories are included?
The Cal Flame P5 includes a rotisserie kit (motor and spit, up to 35 lbs.), a flat-top griddle tray, a covered smoke box, and a grill cover. No additional accessory purchase is needed to use these cooking modes.
How long does shipping take?
Smart Chefs Haven ships free to the contiguous United States. Orders placed by 2 PM MDT Monday–Friday typically ship within 1–2 business days. Total estimated delivery is 3–9 business days. Tracking is provided by email.
