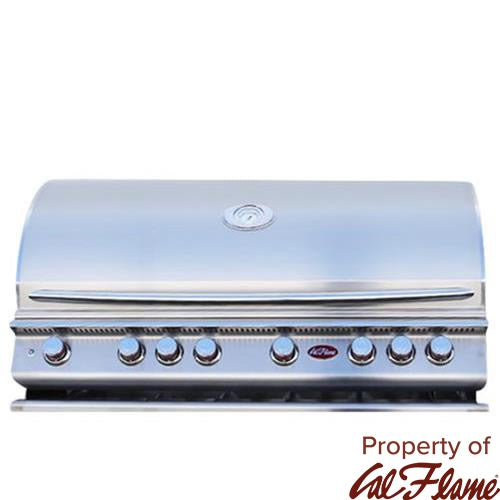

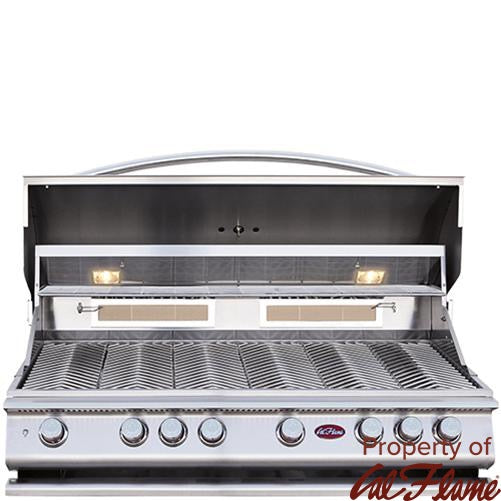

Cal Flame P6 | 6-Burner Built-In Propane Grill | 110,000 BTU | 1,000 sq in
Couldn't load pickup availability
The Cal Flame P6 is a 6-burner built-in propane grill designed for permanent outdoor kitchen installations. It is for outdoor kitchen builders who need a high-output, drop-in grill with a full accessory set included. The P6 runs on propane only — no natural gas conversion kit is available for this model — and delivers 110,000 total BTU across six primary burners plus one dedicated rear infrared rotisserie burner.
Why This Built-In Propane Grill
110,000 BTU total output — six 15,000 BTU stainless steel burners plus one 15,000 BTU rear infrared burner for rotisserie cooking.
1,000 sq. in. cooking surface — 3/8 in. solid stainless steel V-grate cooking grids across the full width.
Full accessory set included — rotisserie kit, griddle tray, and smoke box ship with the grill; no separate accessory purchases required.
Built-in design with precise cutout specs — 45.75 in. W × 22 in. D × 9.5 in. H cutout; verify before ordering.
Independent zone control — each burner knob independently powers its own piezo ignition; any burner can be switched to a sear zone.
Key Features
- Six 15,000 BTU burners — cast stainless steel with lip guards to prevent clogging; independent piezo ignition per burner
- 1 × 15,000 BTU rear infrared burner — dedicated rotisserie burner; motor mounts on left or right side
- 1,000 sq. in. cooking surface — 3/8 in. solid stainless steel V-grate cooking grids, removable for cleaning
- Full-width warming rack — additional cooking/holding space above the main grates
- Full-width pull-out drip tray — catches grease across the entire cooking area
- Lighted work surface — built-in lights with easy on/off switch for low-light cooking
- Rotisserie included — holds up to 35 lbs. or 2 chickens; motor mounts left or right
- Griddle tray included — fits the Cal Flame grill; stores flat when not in use
- Smoke box included — covered accessory tray for wood chips
- Grill cover included
- Propane only — no natural gas conversion kit available for this model
Specifications
| Spec | Value |
|---|---|
| Brand | Cal Flame |
| Model | P6 |
| SKU | BBQ19P06 |
| Fuel Type | Propane (LP) only — no conversion kit |
| Number of Burners | 6 primary + 1 rear infrared |
| Primary Burner BTU | 75,000 BTU (6 × 15,000 BTU) |
| Rear Burner BTU | 15,000 BTU (infrared rotisserie) |
| Total BTU | 110,000 BTU |
| Cooking Surface | 1,000 sq. in. |
| Grate Material | 3/8 in. solid stainless steel V-grate |
| Burner Material | Cast stainless steel |
| Grill Material | Stainless steel, fully welded |
| Hood Construction | Double-wall welded stainless steel |
| Ignition | Piezo (independent per burner) |
| Assembled Dimensions (W × D × H) | 39 in. × 24 in. × 22 in. |
| Cutout Dimensions (W × D × H) | 45.75 in. × 22 in. × 9.5 in. |
| Product Weight | 245 lbs |
| Rotisserie Capacity | Up to 35 lbs. / 2 chickens |
| Warranty | 10 years (burners, frame, grids); 3 years (flame tamer); 1 year (valves and all other parts) |
What's Included
- Cal Flame P6 6-burner built-in propane grill
- Rotisserie kit (motor, spit rod)
- Griddle tray
- Smoke box
- Grill cover
Installation & Setup
- Installation type: Built-in drop-in only. This grill is not freestanding and requires a permanent outdoor kitchen cutout.
- Cutout dimensions: 45.75 in. W × 22 in. D × 9.5 in. H — verify your countertop cutout before ordering.
- Fuel: Propane (LP) only. No natural gas conversion kit is available for this model. A dedicated propane supply line is required.
- Electrical: Grill lights require a power connection. Verify electrical access at the installation location.
- Assembly: No assembly required per manufacturer specifications.
- Professional installation recommended for gas line connection and electrical hookup. Comply with local building and gas codes.
Shipping & Returns
- Shipping: Free standard shipping within the United States. Estimated delivery: 3–9 business days from order date.
- Returns: See our Return Policy for eligibility details on this item.
- Damaged on arrival: Report within 7 days of delivery with photos to support@smartchefshaven.com.
- Warranty: 10-year limited warranty on burners, frame, and cooking grids. 3-year warranty on flame tamer. 1-year warranty on gas valves and all other parts. Warranty applies to original purchaser at original delivery location under standard residential use. Does not cover rental or commercial use, rust/corrosion/discoloration unless component is non-functional, or damage from misuse, improper fuel, or unauthorized modifications. Labor and shipping of replacement parts not covered.
Common Questions
Is this grill compatible with natural gas?
No. The Cal Flame P6 (SKU BBQ19P06) is propane (LP) only. No natural gas conversion kit is available for this model. Do not attempt to connect to a natural gas supply.
What are the cutout dimensions for installation?
The Cal Flame P6 requires a cutout of 45.75 in. wide × 22 in. deep × 9.5 in. high. Verify your outdoor kitchen countertop dimensions before ordering.
What accessories are included?
The P6 includes a rotisserie kit (holds up to 35 lbs. or 2 chickens), a griddle tray, a smoke box, and a grill cover. No additional accessory purchases are required for these features.
How long is the warranty?
The Cal Flame P6 carries a 10-year limited warranty on burners, the stainless steel frame, and cooking grids; 3 years on the flame tamer; and 1 year on gas valves and all other parts. The warranty applies to the original purchaser under standard residential use only.
Does this grill require professional installation?
The grill itself ships assembled and drops into a countertop cutout. However, connecting the propane supply line and any electrical for the grill lights should be performed by a qualified professional in compliance with local building and gas codes.
