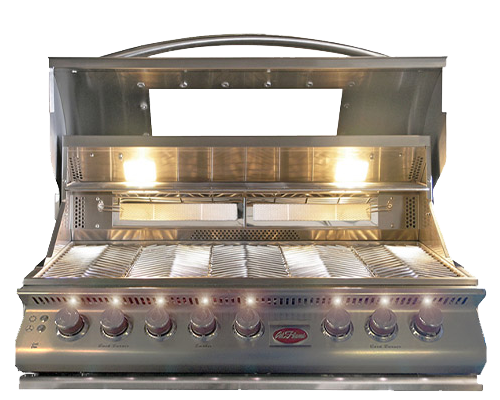

Cal Flame Top Gun | 95,000 BTU | 40-Inch Built-In Gas Grill | Glass Hood Window
Couldn't load pickup availability
The Cal Flame Top Gun (SKU BBQ19875CTG) is a 40-inch built-in gas grill with 1,000 sq in of cooking surface, designed to fit any Cal Flame barbecue cart or island. It is built for the outdoor cook who wants convection-assisted heat distribution with premium visibility features in a permanent or cart-mounted setup. The grill features 304 stainless steel construction, five 15,000 BTU cast stainless steel burners, two 10,000 BTU ceramic core infrared burners, a glass window on the hood, and Cal Flame's exclusive LED-lit stainless steel knobs. Available in Liquid Propane (LP).
Why This Built-In Gas Grill
Seven burner zones across 1,000 sq in — five 15,000 BTU main burners and two 10,000 BTU ceramic core infrared burners deliver 95,000 BTU total across 1,000 sq in of cooking surface.
Convection system reduces cook times — per Cal Flame, high-velocity rear fans reduce cooking times up to 30% and use up to 25% less fuel compared to conventional grills when the hood is closed.
Glass hood window — monitor cooking progress without lifting the lid, reducing heat loss during the cook.
LED-lit knobs — Cal Flame's exclusive stainless steel knobs with integrated LED lighting make controls visible and usable after dark.
Rotisserie-ready out of the box — a full-sized rotisserie rod rated for up to 35 lbs or two chickens ships with the grill; motor mounts configurable left or right.
Key Features
- 304 Stainless Steel Construction — corrosion-resistant exterior for permanent outdoor installation or cart use
- Five 15,000 BTU Cast Stainless Steel Burners — independent easy-start ignition on each burner; lip guards on all burners to prevent clogging
- Two 10,000 BTU Ceramic Core Infrared Burners — dedicated high-heat infrared zones
- High-Velocity Convection Fan System — rear-mounted fans circulate heated air throughout the cooking cavity; per Cal Flame, reduces cook times up to 30%
- Glass Hood Window — monitor cooking without lifting the lid
- LED-Lit Stainless Steel Knobs — Cal Flame exclusive; integrated LED lighting on each knob
- 1,000 Sq In Cooking Surface — with 4 removable heavy-duty V-grates
- Rotisserie Rod Included — full-sized; holds up to 35 lbs or two chickens; motor mounts left or right side
- Two-Position Full-Width Warming Rack — keeps cooked food warm while main grates stay in use
- Full-Width Drip Tray — simplifies grease cleanup
- Built-In Burner Lights — illuminate the cooking surface for day or night use
Specifications
| Spec | Value |
|---|---|
| Brand | Cal Flame |
| SKU / Model | BBQ19875CTG |
| Product Type | Built-In Gas Grill (Convection) |
| Grill Width | 40 inches |
| Overall Dimensions | 39" W x 24" D x 22 7/16" H |
| Cut-Out Dimensions | 38 1/4" W x 22" D x 9 1/2" H |
| Cooking Surface | 1,000 sq in |
| Construction Material | 304 Stainless Steel |
| Number of Main Burners | 5 |
| Main Burner Output | 15,000 BTU each (cast stainless steel) |
| Infrared Burners | 2 × 10,000 BTU ceramic core infrared |
| Convection Burner | 1 × 2,500 BTU stainless steel |
| Total BTU Output | 95,000 BTU |
| Convection System | High-velocity rear fans; per Cal Flame, reduces cook times up to 30% |
| Hood | Glass window |
| Knobs | LED-lit stainless steel, Cal Flame exclusive |
| Grate Type | V-grate, removable heavy-duty (4) |
| Warming Rack | Two-position, full-width |
| Drip Tray | Full-width |
| Splash Guard | Front, with vent |
| Ignition | Independent easy-start ignition, all burners |
| Fuel Type | Liquid Propane (LP) |
| Burner Lights | Built-in |
| Rotisserie Rod | Included; up to 35 lbs; motor mounts left or right |
| Warranty — Structure | 10 years |
| Warranty — Stainless Steel Burners | 10 years |
| Warranty — V-Grates | 10 years |
| Warranty — Flame Tamers and Warming Rack | 3 years |
| Warranty — Gas Valves and Other Components | 1 year |
Warranty coverage is provided by Cal Flame and is included in the product documentation.
What's Included
- Cal Flame Top Gun built-in gas grill unit (BBQ19875CTG)
- 4 removable V-grates
- Two-position full-width warming rack
- Full-width drip tray
- Built-in burner lights (installed)
- Convection fan system (installed)
- Rotisserie rod (holds up to 35 lbs)
- Rotisserie motor mounts (left or right side)
- C-Griddle Tray
- C-Grill Cover
Installation / Setup
- Cut-out required: 38 1/4" W x 22" D x 9 1/2" H — measure your cart or island opening before ordering
- Overall unit dimensions: 39" W x 24" D x 22 7/16" H
- Compatible with: Cal Flame barbecue carts and outdoor kitchen islands
- Installation type: Drop-in / built-in
- Fuel: Liquid Propane (LP) — confirm propane supply and regulator compatibility before ordering
- Outdoor use only — not rated for indoor installation
- Rotisserie motor mounts: configurable for left or right side
Professional installation is recommended for permanent outdoor kitchen builds to ensure proper fit, gas line connection, and compliance with local building and gas codes.
Shipping and Warranty
- Shipping: Free standard shipping on eligible U.S. orders. This product ships via freight carrier. See our Shipping Policy for delivery timeframes. No delivery to P.O. boxes.
- Warranty: Cal Flame provides a 10-year warranty on the structure, stainless steel burners, and V-grates; 3 years on flame tamers and warming rack; and 1 year on gas valves and other components. Warranty documentation is included with the product.
- Returns: Items may be returned within 30 days of delivery in unused, original-packaging condition. Damage must be reported within 7 days of delivery. A 25% restocking fee applies to approved returns. Customer is responsible for return shipping unless the item arrived defective or damaged. See our Return Policy for full details.
Common Questions
What are the cut-out dimensions for the Cal Flame Top Gun grill?
The Cal Flame Top Gun (BBQ19875CTG) requires a cut-out opening of 38 1/4" wide x 22" deep x 9 1/2" high. Overall unit dimensions are 39" W x 24" D x 22 7/16" H. It is designed to fit Cal Flame barbecue carts and outdoor kitchen islands with this opening size.
Does the Cal Flame Top Gun work with natural gas?
The spec sheet confirms Liquid Propane (LP) only. Contact Smart Chefs Haven to confirm whether a Natural Gas configuration is available for this model.
Is the rotisserie included with the Cal Flame Top Gun grill?
Yes. The Cal Flame Top Gun includes a full-sized rotisserie rod rated for up to 35 lbs or two chickens. Motor mounts are configurable for left or right side.
What makes the Top Gun knobs different?
The Cal Flame Top Gun features stainless steel knobs with integrated LED lighting — a Cal Flame exclusive design that makes the controls visible and usable after dark.
How does the convection system work?
Per Cal Flame, high-velocity fans at the rear of the grill circulate heated air throughout the cooking cavity when the hood is closed. Cal Flame states this reduces cooking times up to 30% and uses up to 25% less fuel compared to conventional grills.
What warranty does the Cal Flame Top Gun grill carry?
Cal Flame provides a 10-year warranty on the structure, stainless steel burners, and V-grates; a 3-year warranty on flame tamers and the warming rack; and a 1-year warranty on gas valves and other components. Warranty documentation ships with the product.
What is the return policy for this grill?
Smart Chefs Haven accepts returns within 30 days of delivery for items in unused, original-packaging condition. A 25% restocking fee applies to all approved returns. Damage must be reported within 7 days of delivery. Return shipping is the customer's responsibility unless the item arrived defective or damaged.
